The check engine light comes on, your truck loses power, and the dash shows a DPF warning. If you ignore it, the engine goes into derate mode and your truck slows to a crawl. The diesel particulate filter traps soot from your exhaust, and over time it clogs. DPF filter cleaning costs $300 to $600 for most trucks and takes 4 to 8 hours. Replacement costs $2,000 to $5,000+. Cleaning it on schedule saves thousands and keeps you out of the shop. This guide covers the full process, costs, warning signs, and how often your DPF actually needs attention.
What Is a DPF and Why Does It Clog

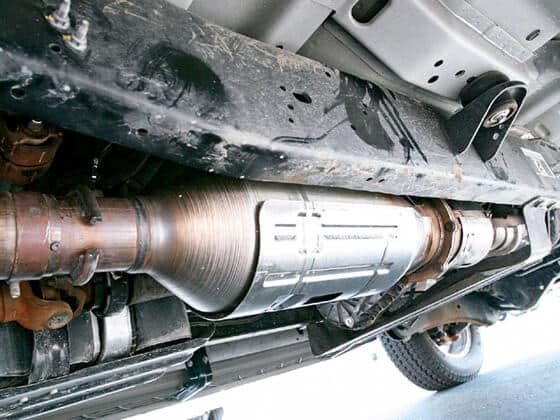

The diesel particulate filter (DPF) sits in the exhaust system and captures soot particles before they exit the tailpipe. It’s a legal requirement on all diesel trucks manufactured after 2007 under EPA emissions regulations.
The filter cleans itself through a process called regeneration (regen). During active regen, the exhaust temperature rises above 1,000°F and burns off accumulated soot. But regen doesn’t remove everything. Ash from engine oil additives builds up over time and can’t be burned off. This ash accumulation is the main reason DPF filter cleaning becomes necessary.
Common reasons a DPF clogs faster than normal:
- Excessive idling (prevents regen from completing)
- Short trips that don’t allow the exhaust to reach regen temperature
- Using the wrong oil specification (high ash oils cause faster buildup)
- Failed sensors that prevent the regen cycle from initiating
- Worn injectors or turbo issues that increase soot output
- Ignoring warning lights and continuing to drive in derate mode
DPF Filter Cleaning Cost Breakdown
| Service | Typical Cost | Turnaround |
|---|---|---|
| DPF cleaning (thermal / bake and blow) | $300 to $500 | 4 to 8 hours |
| DPF cleaning (pneumatic / air knife) | $200 to $350 | 2 to 4 hours |
| DPF cleaning (ultrasonic) | $400 to $600 | 6 to 10 hours |
| Diagnostics and sensor check | $100 to $200 | 1 to 2 hours |
| Forced regen at shop | $150 to $300 | 1 to 2 hours |
| DPF replacement (OEM) | $2,000 to $5,000+ | Same day to 3 days |
| DPF replacement (aftermarket) | $800 to $2,000 | Same day to 3 days |
Important: A shop should always run diagnostics before performing DPF filter cleaning. If back pressure readings, sensor data, or ash load levels indicate the filter is cracked or melted internally, cleaning won’t help. You need a replacement.
How DPF Filter Cleaning Works: Step by Step
A professional DPF filter cleaning follows a specific process. Here’s what a qualified shop does:
- Pre-inspection. The technician scans the ECM for fault codes related to the DPF, EGR, and exhaust system. Back pressure is measured and compared to factory specs.
- Filter removal. The DPF is unbolted from the exhaust system. On most trucks this takes 30 to 60 minutes depending on accessibility and clamp condition.
- Visual inspection. The technician checks the filter substrate for cracks, melting, or structural damage. A damaged filter cannot be cleaned and must be replaced.
- Cleaning. The method depends on the shop’s equipment:
- Thermal (bake and blow): The filter goes into an oven at controlled temperature to burn off remaining soot, then compressed air blows out the ash. Most common method.
- Pneumatic (air knife): High-pressure air pulses force ash out of the filter cells. Faster but less thorough for heavy buildup.
- Ultrasonic: The filter soaks in a cleaning solution while ultrasonic waves break loose embedded ash. Most thorough method, best for severely clogged filters.
- Post-cleaning inspection. The filter is weighed and compared to its clean weight. Back pressure is tested again. A properly cleaned filter should measure within 10% to 15% of factory-new specs.
- Reinstallation. The filter is reinstalled with new gaskets. The technician clears ECM codes and performs a forced regen to verify everything functions correctly.
- Road test or idle verification. The truck runs to confirm regen cycles normally and no new fault codes appear.
When to Clean vs. When to Replace
Not every clogged DPF can be saved. Here’s how to decide:
| Factor | Clean | Replace |
|---|---|---|
| Ash load | Under 80% | Over 80% or sensor maxed |
| Filter condition | No cracks, no melting | Cracked, melted, or collapsed |
| Mileage since last cleaning | Under 200,000 miles | Over 300,000+ on original |
| Back pressure after cleaning | Returns to near factory spec | Still elevated after cleaning |
| Cost comparison | $300 to $600 | $2,000 to $5,000+ |
| Cleaning history | First or second cleaning | Third+ with poor results |
Rule of thumb: If the filter has been cleaned twice and back pressure still doesn’t drop to acceptable levels, replacement is the better investment.
Signs Your DPF Needs Cleaning Now
Don’t wait for derate mode. Watch for these early warnings:
- DPF warning light or check engine light on the dash
- Frequent active regen cycles (more than once per 100 miles)
- Regen cycles that fail to complete
- Reduced engine power or sluggish acceleration
- Increased fuel consumption (5 to 15% above normal)
- Exhaust back pressure readings above manufacturer limits
- Strong exhaust smell or visible smoke during regen
If you notice two or more of these symptoms, schedule DPF filter cleaning before the truck goes into full derate.
FAQ
How much does DPF filter cleaning cost? Professional DPF filter cleaning runs $300 to $600 depending on the method and filter size. Add $100 to $200 for diagnostics. This is significantly cheaper than replacement at $2,000 to $5,000+.
How often should a DPF be cleaned? Most manufacturers recommend DPF filter cleaning every 150,000 to 200,000 miles. Trucks with high idle time or city driving may need cleaning sooner, around 100,000 miles.
Can I clean a DPF myself? Not effectively. DIY methods like pressure washing or oven cleaning at home can damage the ceramic substrate. Professional equipment (thermal ovens, ultrasonic baths) is required for proper results.
Is DPF delete legal? No. Removing or tampering with a DPF is a federal violation under the Clean Air Act. Penalties for individuals can reach $5,000+, and shops that perform deletes risk fines up to $5,000 per violation. Additionally, deleted trucks fail DOT inspections.
What happens if I keep driving with a clogged DPF? The ECM will derate the engine, limiting speed to 5 to 25 MPH. Continued driving with a severely clogged filter can cause extreme exhaust temperatures that melt the filter substrate, turning a $400 cleaning into a $4,000 replacement.
Does a forced regen replace DPF cleaning? A forced regen burns off soot but does not remove ash. It’s a temporary solution. If the filter’s ash load is high, only professional DPF filter cleaning will restore proper flow.
DPF filter cleaning is one of the most cost-effective maintenance items on a diesel truck. At $300 to $600, it prevents a $2,000 to $5,000 replacement and keeps your truck running at full power. Don’t wait for derate mode. Watch for the early warning signs and clean the filter on schedule. G Smart Service LLC offers professional DPF filter cleaning for semi trucks and commercial diesels in Monroe and the Charlotte, NC area. Call (980) 318-0425 or visit gsmartservice.com to schedule service.
